Connect GBA SP to Capture Card: 2026 Setup Guide

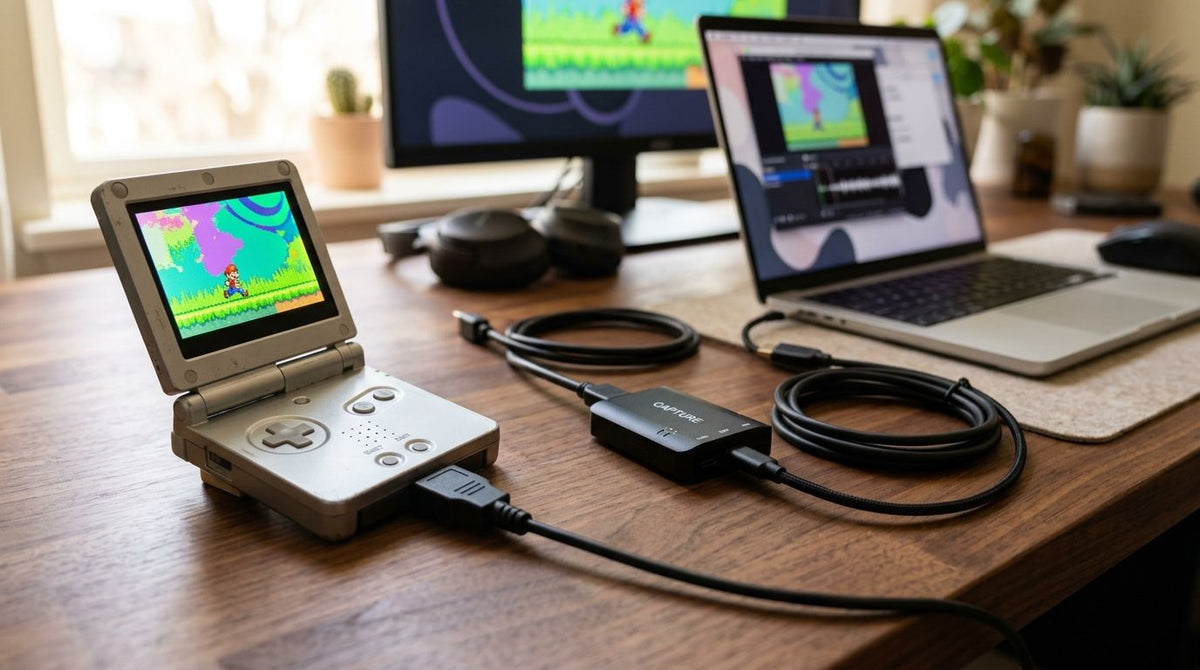

A stock Game Boy Advance SP has no video output port, so connecting a GBA SP to a capture card requires an AV mod first — the mod adds a composite (RCA) signal you can feed into any capture device. Skip that step and you're stuck filming the screen with a phone camera, which is why so many "GBA capture" tutorials fall apart at step one.

TL;DR

You can't connect gba sp to capture card without an AV/composite mod — stock consoles have zero video output.
Cheap UTV007-chipset composite dongles show visible combing on GBA's 240p output; deinterlace in OBS or spend more.
A GBA SP running USB-C power (not AA batteries) survives long recording sessions without brightness drop or shutdown.
OBS Studio reads the capture card as a Video Capture Device source — set resolution to match the card's native NTSC output.

Why this matters

Game Boy Advance and GBA SP footage is everywhere on YouTube and Twitch in 2026, but almost none of it comes from a stock console. The hardware was built in 2003 for a screen, not a video output, so every capture setup you see online is running through a mod board that taps the LCD ribbon and pushes out composite video. Get that part wrong and no capture card, no matter how good, will show a signal.

The other failure point is software: OBS doesn't know what a Game Boy Advance is, it just sees a generic composite device, and if you don't set deinterlacing and resolution correctly you'll record wobble and combing instead of clean 240p gameplay. Once both halves are dialed in, the workflow is repeatable for every session after.

Before you start

A GBA SP with an AV/composite mod already installed. If yours is stock, that's a hardware job first — Retrofit's repair and upgrade services cover this kind of internal mod work in Australia.
A capture device with a composite (RCA) input — either a dedicated composite-to-USB dongle or an HDMI capture card paired with a composite-to-HDMI upscaler in front of it.
OBS Studio (or equivalent capture software) installed and ready, plus a cable long enough to reach your desk without straining the mod's AV jack.
The gotcha: a lot of budget composite dongles run the UTV007 chipset. It works, but it shows visible interlacing combing on the GBA's native 240p output during fast scrolling. Know this before you record ten minutes of footage and wonder why it looks broken.

Set up the AV mod output

Locate the composite port your mod added — usually a small 2.5mm or 3.5mm AV jack routed out through the cartridge slot or a drilled housing near the old charge port.
Connect an AV breakout cable (RCA yellow for video, red/white for stereo audio) from that jack to your capture device's inputs.
Power on the GBA SP and check your capture software's preview window for a live image.

Expected result: the console's screen content mirrors instantly in your capture preview with no lag spikes or dropped frames.

Configure the capture card in OBS

Open OBS Studio, go to the Sources panel, and click the + button.
Select Video Capture Device and name it something identifiable like "GBA SP Capture."
In the Device dropdown, pick your capture card from the list.
Set Resolution/FPS Type to Custom and match the card's native NTSC output — typically 720x480 or 640x480 at roughly 60Hz.
Right-click the source, open Deinterlacing, and select Yadif 2x if you see horizontal combing during scrolling scenes.

Expected result: a stable, full-frame GBA SP image in the OBS canvas with no green flicker or torn lines.

Check levels and audio

Open the Audio Mixer panel and confirm the "GBA SP Capture" fader moves when in-game sound plays.
If there's no audio, right-click the source, go to Properties, tick Use custom audio device, and match it to the capture card's audio input rather than your PC's default mic.
Play a game with music or SFX and watch the meter bounce.

Expected result: audio and video stay in sync with no delay you can hear against the on-screen action.

Streaming live instead of recording locally

The same source works for a live stream with one change: instead of hitting Start Recording, configure Settings > Stream with your platform's server and stream key, then hit Start Streaming. Everything upstream of OBS — the mod, the RCA cable, the capture card — stays identical whether you're saving an MP4 or going live on Twitch.

“If your capture card shows combing on fast-scrolling GBA footage, that's not a bad cable, it's an interlacing problem — fix it in software, not hardware.”

Troubleshooting

Picture shows but there's no sound. Some AV breakout cables wire audio through a separate 3.5mm TRRS tap. Check your mod's wiring diagram before assuming the capture card is faulty.
Combing or interlacing lines during scrolling. Apply the Yadif 2x deinterlacing filter in OBS on the source itself, not as a post-process filter.
Capture card reports "no signal." The mod's video amp often needs a stable power tap from the console board — recheck the mod's install guide for the correct voltage point.
Video looks washed out or low contrast. Common with entry-level composite dongles. Add a Color Correction filter in OBS and nudge contrast up 10-15%.
The console dims or dies mid-session. A GBA SP running on AA or a stock lithium pack won't survive a long recording session. Running it on USB-C power removes this variable entirely — see charging accessories for the GBA SP for options that keep power stable through a two-hour recording block.

Need a GBA SP repaired before you record?

AV mods and console repairs handled in Australia, ready to plug into a capture card.

Get repair help

Customize your workflow

Once the base setup runs clean, the obvious next step is monitoring what you're recording without squinting at a tiny screen. A GBA SP with an upgraded display is easier to line up shots and check exposure on before you even look at the OBS preview. It's also worth thinking about which physical console you're running this rig on long-term — a unit chosen for reliability under repeated use records better than one chosen purely for shell colour.

Verdict: a GBA SP with a working AV mod and a mid-range composite capture card is the minimum viable rig for connect gba sp to capture card projects in 2026 — cheap dongles work but cost you cleanup time in post.

FAQ

Can I connect a stock GBA SP to a capture card without modding it?

No. A stock GBA SP has no video output port, so there's nothing for a capture card to read. An AV/composite mod has to be installed first before any capture device will show a signal.

What's the best capture card for GBA SP recording in 2026?

Any capture device with a composite (RCA) input works, but avoid the cheapest UTV007-chipset dongles since they show combing on the GBA's 240p output. A mid-range composite-to-HDMI or composite-to-USB card with deinterlacing support handles the signal more cleanly.

Why does my GBA SP capture show no signal?

Usually the AV mod's video amp isn't getting stable power from the console board, or the RCA cable is wired to the wrong jack. Recheck the mod's install guide before assuming the capture card is at fault.

Do I need OBS to record GBA SP gameplay?

OBS Studio is free and reads any capture card as a generic Video Capture Device source, which makes it the simplest option. Any software that recognises USB video capture devices will work the same way.

Is composite video the only way to capture GBA SP output?

For a modded GBA SP, yes, composite is the standard output most AV mods use. There's no native HDMI or digital output on the console itself, so composite-to-USB or composite-to-HDMI conversion is the path every capture setup takes.

Does a capture card add noticeable lag when recording GBA SP?

Composite capture adds a small amount of latency, generally enough to notice in fast-input games like platformers but not enough to affect casual recording or streaming. If you're speedrunning on camera, monitor through the original screen rather than the capture preview.

Can I stream GBA SP gameplay live instead of just recording?

Yes, the same AV mod and capture card setup works for live streaming. In OBS, just configure the Stream settings with your platform's key instead of hitting Record — the video source doesn't change.

Does an IPS screen mod affect capture card output?

No. The IPS screen replacement is a separate mod from the AV/composite output mod, and one doesn't interfere with the other. The capture card only reads the composite signal coming from the AV mod, not what's shown on the internal display.

One last thing

Most combing complaints in GBA SP capture footage aren't a bad capture card at all — they're a missing deinterlacing filter in OBS. Before buying a second, more expensive capture device, try switching the existing one to Yadif 2x first. It fixes the majority of "my capture looks broken" reports for free.
