A healthy Game Boy Advance SP should not overheat simply because you play for several hours. Mild warmth during play or charging can be normal, but a shell that becomes uncomfortable to hold, a swollen battery, an unusual smell or an unexpected shutdown points to a fault rather than normal long-session use in 2026.
- Game boy advance sp overheating is not expected from long play alone on a healthy console.
- Charging while playing can create more warmth because the battery charges while the console draws power.
- IPS V5 hardware adds display circuitry, but noticeable heat still requires inspection rather than dismissal.
- Retro Fit is best for players wanting a tested, refurbished GBA SP with modern display and charging upgrades.
Why this matters
The Game Boy Advance SP contains ageing lithium-ion battery hardware, and many surviving consoles have been repaired, reshelled or modified. A warm console is not automatically dangerous, but treating every temperature change as normal risks overlooking a failing battery or charging component.
Battery condition matters more than session length. If your concern is runtime rather than heat, start with the guide to Game Boy Advance SP battery life because shortened runtime, unstable charging and heat can appear together when a battery is deteriorating.
The distinction is simple in 2026: mild, stable warmth is usually an operating characteristic; increasing heat, physical battery changes or power instability requires action.
Can a Game Boy Advance SP overheat during long play sessions?
A Game Boy Advance SP can overheat when it has a battery fault, charging fault, short circuit, damaged component or poor modification work. Long play by itself is not the expected cause.
The original system uses a 32-bit ARM7TDMI processor running at approximately 16.78 MHz and drives a 240 × 160-pixel display. Those specifications create far less heat than a modern phone or handheld gaming computer, so the processor is not normally the part that makes the shell noticeably hot.
| Situation | What you may notice | What it means | Recommended action |
|---|---|---|---|
| Healthy console during long play | Little change or mild warmth | Normal operation | Keep playing and monitor it |
| Console charging during play | More warmth near the battery or charging area | Charging adds another heat source | Disconnect the charger and compare |
| IPS V5 console at high brightness | Mild warmth near upgraded display circuitry | Extra screen hardware draws power | Lower brightness and check whether warmth stabilises |
| Shell becomes uncomfortable to hold | Heat continues rising instead of stabilising | Possible battery, charging or board fault | Turn it off and stop charging |
| Swelling, smell or unexpected shutdown | Physical or electrical failure signs | Not normal under any session length | Stop using it and arrange inspection |
The practical verdict is that long play exposes existing problems; it does not normally create an overheating problem in a healthy GBA SP. This applies to original and correctly modified hardware in 2026.

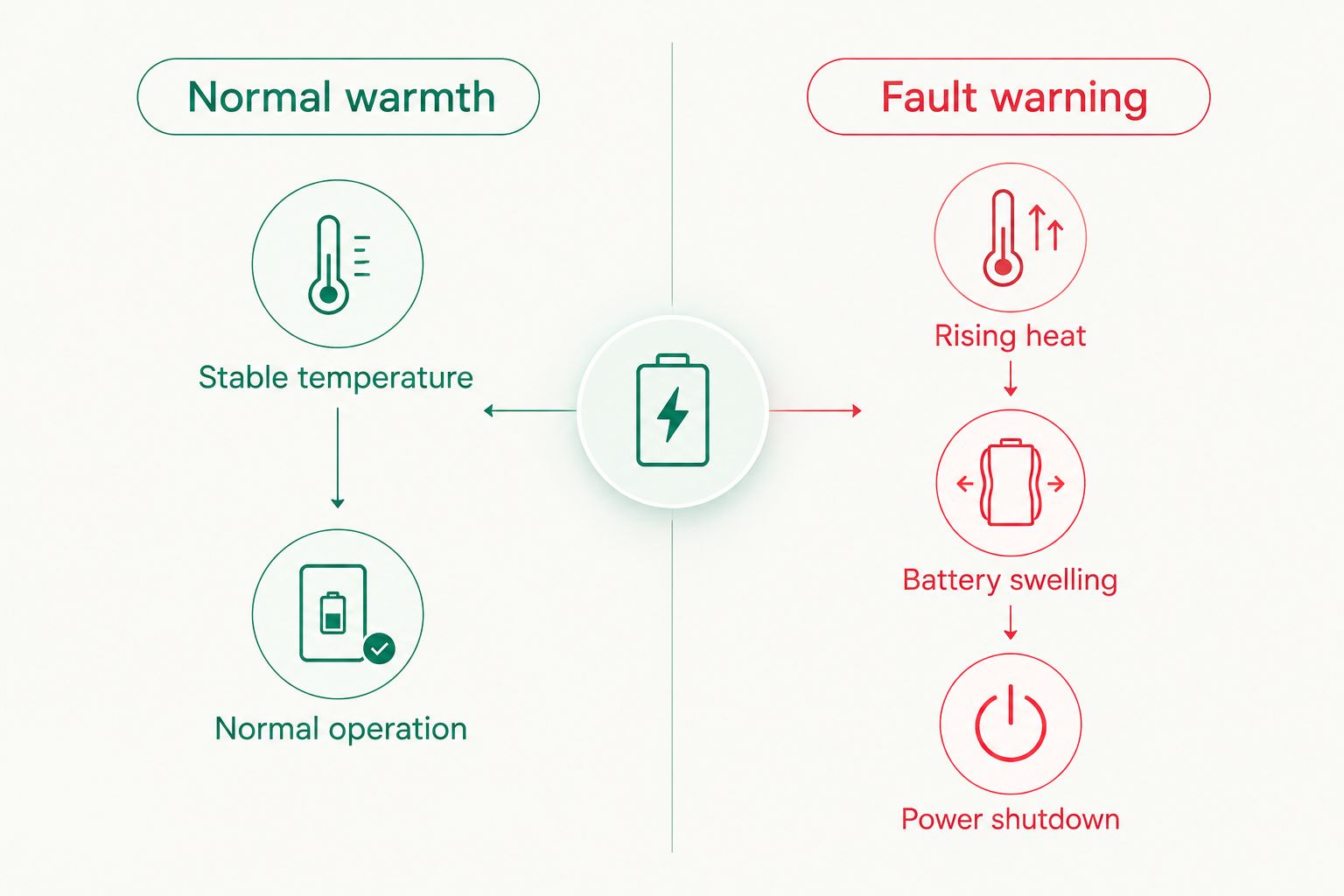

What normal warmth feels like
Normal operating warmth remains mild and stable. It may be easier to notice while the battery is charging, when an IPS screen is set brightly or when the room itself is warm, but it should not keep intensifying throughout the session.
Check the console with clean, dry hands after disconnecting the charger. Compare the battery-cover area, charging-port area and upper screen housing. A small difference between areas is less concerning than heat that spreads, increases quickly or makes you want to put the console down.
Do not use your hand as a precision temperature test. The useful observations are whether the warmth is stable, whether the console behaves normally and whether any physical warning signs appear.
Warning signs that are not normal
Stop playing and disconnect external power if you notice any of these signs:
- The shell is uncomfortable to hold. A working handheld should not require you to tolerate painful or rapidly rising heat.
- The battery cover is lifting or distorted. A swollen lithium-ion battery can push against the cover and internal components.
- The console smells sweet, metallic, burnt or chemically unusual. An unfamiliar smell around a battery-powered device requires immediate caution.
- The system shuts down or restarts unexpectedly. Power instability can indicate a failing battery, damaged charging circuit or poor electrical connection.
- Charging becomes intermittent. Repeatedly connecting and disconnecting power can create additional stress at the port or charging board.
- Heat began after a repair or modification. A pinched wire, solder bridge, incorrect insulation or damaged component needs inspection.
Do not puncture, squeeze or continue charging a swollen battery. Power the console off, move it away from flammable materials and arrange safe battery replacement or electronics disposal through an appropriate local service.
Why Game Boy Advance SP temperature varies
Battery condition
The GBA SP uses a rechargeable 3.7 V lithium-ion battery. Battery chemistry changes with age, charging history, storage conditions and physical damage, so two consoles with identical motherboards can behave differently under the same game and screen settings.
A battery that drains unusually quickly, charges inconsistently or changes shape should be replaced rather than tested through repeated long sessions. Session length does not repair a weak cell; it only keeps the battery under load for longer.
Charging while playing
Charging and playing make the battery system accept power while the console consumes it. That creates more heat than playing from a charged battery alone, especially when an upgraded display is also drawing power.
If the console feels warmer than expected, disconnect the charger and continue only if there are no swelling, smell or shutdown signs. The separate guide to charging a modded GBA SP with USB-C explains why the charger, cable and installed charging hardware must be considered together.
Screen type and brightness
An original reflective AGS-001 display, an original front-lit or backlit assembly and an IPS V5 upgrade do not have identical power requirements. An IPS V5 screen includes modern display and backlight circuitry, so brightness settings affect power use even though the original 16.78 MHz processor remains unchanged.
Mild warmth near upgraded circuitry does not prove the console is overheating. Rapidly increasing heat, shutdowns or battery distortion remain the meaningful warning signs.
Ambient conditions
Direct sunlight, a hot vehicle or an already warm room raises the console's starting temperature. The shell then has less ability to release heat into the surrounding air.
Do not leave a GBA SP charging in direct sunlight, beneath bedding or inside a closed bag. If it has been stored somewhere hot, let it return to a comfortable indoor temperature before charging or testing it.
Repair and modification quality
A screen or charging modification depends on clean soldering, correct insulation, secure wiring and compatible components. Poor workmanship can create heat at a connection even when each individual part is suitable for the console.
This is why heat that begins immediately after a modification deserves inspection. The fault may be localised to installation work rather than the Game Boy Advance SP design.
What should you do if a GBA SP feels hot?
- Pause the game and disconnect the charger. Remove external power before deciding whether the warmth is normal.
- Turn the console off. Do not keep playing to see whether the problem clears while the system remains under load.
- Place it on a stable, non-flammable surface. Keep it away from bedding, paper and direct sunlight.
- Inspect without opening or squeezing it. Look for a raised battery cover, shell distortion, residue or damage around the charging port.
- Let it cool naturally. Do not put it in a refrigerator or freezer because condensation can damage electronics.
- Arrange inspection if warning signs remain. Swelling, odour, repeated shutdowns or renewed heat after restarting are reasons to stop using the console.
If the console returns to normal after the charger is removed and shows no physical warning signs, the extra warmth may have come from charging while playing. Repeat use only under observation and avoid leaving the device charging unattended.
Can an IPS V5 screen cause GBA SP overheating?
An IPS V5 screen increases power demand compared with the original display arrangement, but the screen alone should not make a correctly assembled GBA SP dangerously hot. The installation, battery condition, brightness level and charging state determine whether extra warmth remains mild or becomes a fault symptom.
Retro Fit GBA SP consoles are best for players who want IPS V5 displays and modern charging hardware without performing the modification themselves. The benefit is upgraded visibility and charging convenience; the limitation is that modified hardware has more components and connections to diagnose than an untouched console.
Is charging while playing bad for a GBA SP?
Charging while playing is not automatically a fault, but it combines charging heat with the console's operating load. If you are investigating warmth in 2026, test the console from a charged battery without a cable attached; that isolates charging as a variable without requiring you to open the shell.
Stop immediately if heat keeps increasing after external power is removed. A console that remains hot while switched off requires inspection rather than another charging test.
Does the game being played change the overheating risk?
Pokémon, Zelda and other GBA software run on the same fixed hardware platform. A visually busy scene does not turn the GBA SP into a modern processor that increases its clock speed and power draw dynamically, so changing games is not a meaningful fix for overheating.
Screen brightness, battery health, charging state and electrical condition matter more. If one cartridge appears connected to crashes or heat, inspect the cartridge slot and contacts rather than assuming the software is demanding too much from the processor.
Where Retro Fit fits
Retro Fit sells professionally refurbished and modded Game Boy Advance and GBA SP consoles with configurations that include IPS V5 screens and USB-C charging. It also provides repair and upgrade services, making it relevant when a console needs more than a battery swap or basic external inspection.
The practical advantages are proper testing, builds completed in Australia and a stated 100 Day Warranty. The trade-off is straightforward: a modded Retro Fit GBA SP is not the right choice for a collector who wants untouched original hardware with factory display and charging components.
Retro Fit is also not a substitute for immediate battery safety. If any handheld has a swollen battery, chemical smell or rapidly rising heat, stop using it before contacting a repair provider.
FAQ
Can a Game Boy Advance SP overheat from playing too long?
A healthy Game Boy Advance SP should not overheat from session length alone. Long play can expose a weak battery, charging fault or poor modification that was already present.
Is it normal for a GBA SP to feel warm?
Mild, stable warmth can be normal during play or charging. Rising heat, discomfort, swelling, unusual smells or shutdowns are not normal.
Does an IPS V5 screen make a GBA SP run hotter?
An IPS V5 screen adds display and backlight circuitry, so it can increase power use and mild warmth. It should not make a correctly assembled console dangerously hot.
Should I play a GBA SP while it is charging?
Playing while charging combines operating load with charging heat. If you are diagnosing warmth, charge first and then test the console with the cable disconnected.
What should I do with a swollen GBA SP battery?
Stop using and charging the console immediately. Do not puncture or squeeze the battery; arrange safe replacement and disposal through an appropriate local service.
Can a hot room cause Game Boy Advance SP overheating?
A hot room or direct sunlight raises the console's starting temperature and reduces its ability to release heat. Move it to a cooler indoor area and let it cool naturally before testing or charging.
Are Retro Fit GBA SP consoles tested for normal operation?
Retro Fit states that its refurbished and modded consoles receive proper testing. Its configurations include IPS V5 screens and USB-C charging, depending on the listed console.
One last thing
The cartridge is rarely the heat source. The GBA SP processor remains at approximately 16.78 MHz regardless of whether the game shows a static menu or a crowded battle scene, so swapping Pokémon for Zelda does not solve a battery or charging fault.
In 2026, use behaviour rather than play-session length as your test: stable warmth with normal operation is one thing; increasing heat, swelling, odour or shutdown is a stop signal.
